Alert Webhooks - ResolveAI

Transform any webhook payload into an alert event. This flexible integration handles webhooks from monitoring systems that don’t have first-class integrations.

Prerequisite: Check that you can access the Integrations Page in ResolveAI. You’ll need to be an admin for your organization to visit this page and make changes.

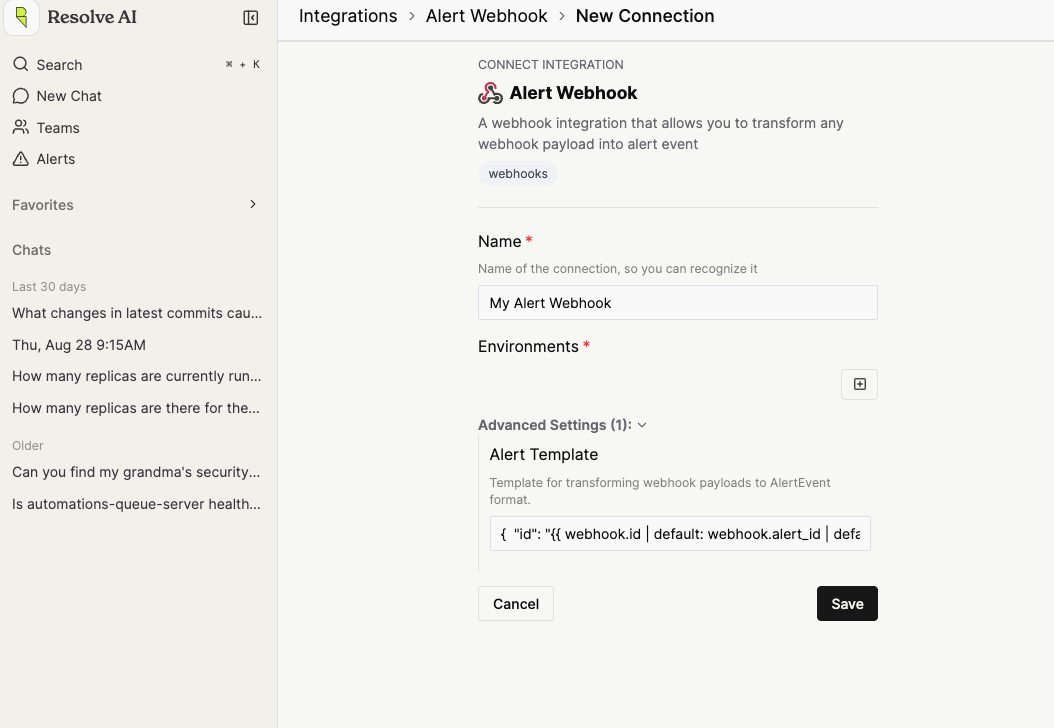

1. In Resolve, create a webhook

Open the Integrations Page
Click Alert Webhook
Click Add Connection
Add a Name for your new webhook
Click Save
Click the Name to re-open the integration instance.
Click Edit
Click + under Webhooks to create a new webhook. This will show custom generate instructions, with secrets unique to this webhook. Note: Ensure you finish the instructions before closing, or you will have to create a new webhook.

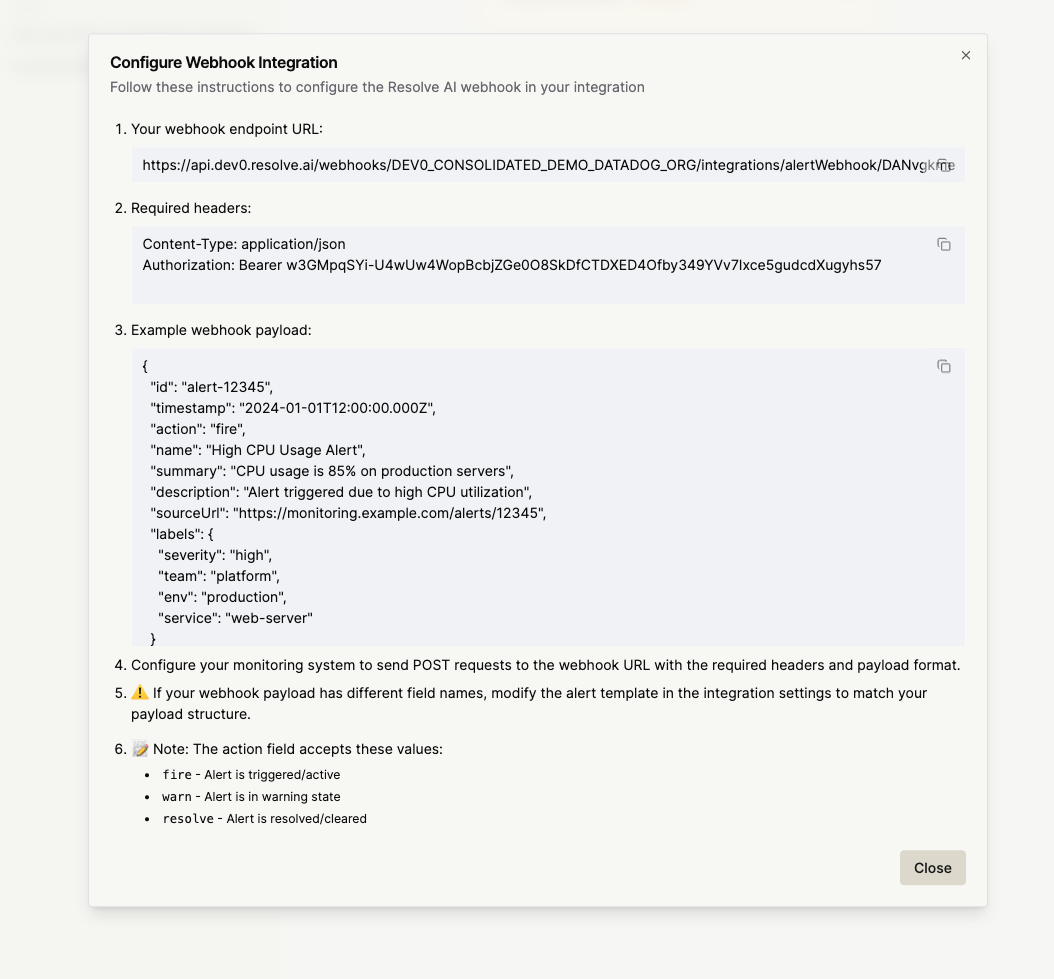

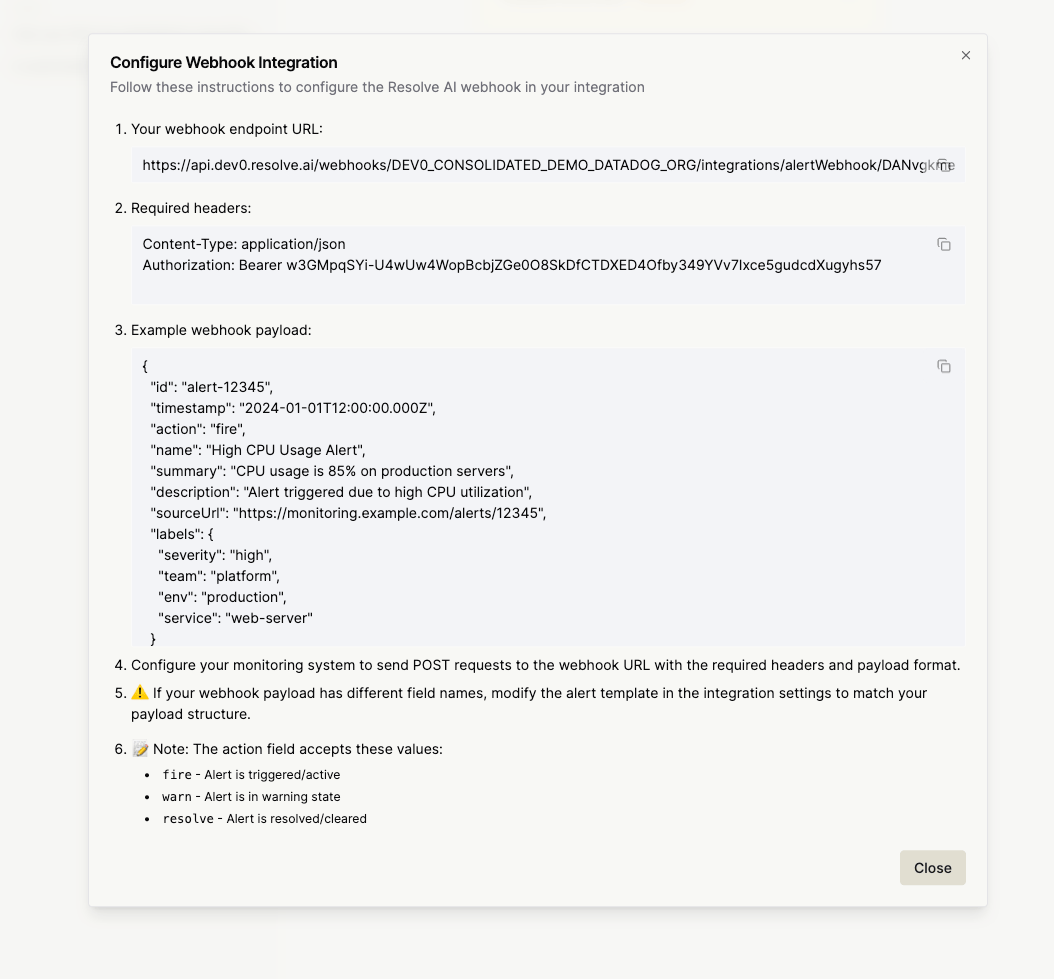

Configure your monitoring system to POST to the Endpoint URL with the Required Headers Bearer token:
- Either in the headers: Authorization: Bearer <yourIngestToken>
- As query params: url?token=<yourIngestToken>

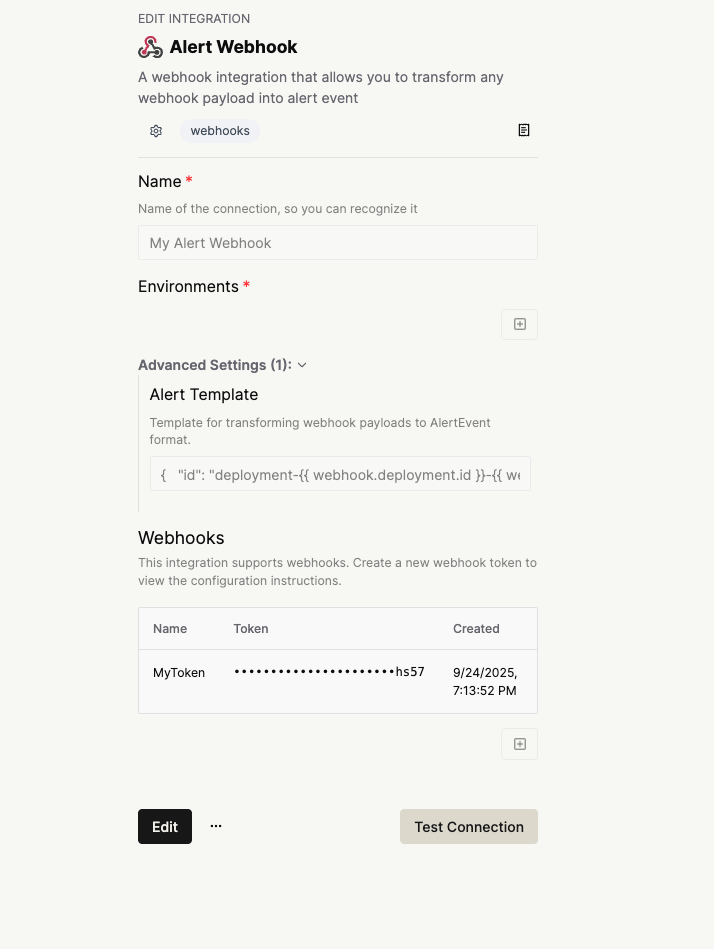

Enable Integration: Switch the webhook on and manage webhook tokens from the post-setup view

Alert Template Configuration

The alert template uses template syntax to transform incoming webhook payloads. The template should output valid JSON that matches the AlertEvent schema.

Required Fields

Your template must include these required fields:

id: Unique identifier for the alert
time: Timestamp in ISO8601 format
action: One of “fire”, “warn”, or “resolve”

Template Context

Templates have access to:

webhook: The incoming webhook payload
now: Current timestamp in ISO8601 format

Example Template

{
  "id": "{{ webhook.id | default: (webhook | hash) }}",
  "time": "{{ webhook.timestamp | iso8601 }}",
  "action": "{{ webhook.action | default: 'fire' }}",
  "name": "{{ webhook.name | default: 'Alert' }}",
  "summary": "{{ webhook.summary | default: webhook.message }}",
  "description": "{{ webhook.description }}",
  "sourceUrl": "{{ webhook.sourceUrl }}",
  "labels": {{ webhook.labels | json }},
  "isHighPriority": {{ webhook.priority | to_boolean }},
  "threshold": {{ webhook.threshold | to_number }}
}

Custom Filters

Use custom filters to transform the data you send via webhook:

Type Conversion Filters

to_number: Converts values to numbers, defaults to 0 for invalid values
to_boolean: Converts values to boolean (handles “true”/“1” as true)
iso8601: Converts date values to ISO8601 format, falls back to current time

Data Processing Filters

regex_extract: Extracts text using regex patterns
json: Serializes values to JSON strings
default: Provides fallback values for empty/null fields
hash: Generates consistent hash values for creating alert IDs
date: Enhanced date filter with “now” keyword support

Filter Usage Example

{
  "id": "{{ webhook.alert_id | default: (webhook | hash) }}",
  "time": "{{ webhook.created_at | iso8601 }}",
  "action": "{{ webhook.status | default: 'fire' }}",
  "name": "{{ webhook.title | regex_extract: '^\\[([^\\]]+)\\]' | default: 'Alert' }}",
  "isHighPriority": {{ webhook.severity | to_boolean }},
  "threshold": {{ webhook.limit | to_number }},
  "labels": {{ webhook.tags | json }}
}

Webhook Payload Examples

Basic Alert Payload

{
  "id": "alert-12345",
  "timestamp": "2024-01-01T12:00:00.000Z",
  "action": "fire",
  "name": "High CPU Usage Alert",
  "summary": "CPU usage is 85% on production servers",
  "description": "Alert triggered due to high CPU utilization",
  "sourceUrl": "https://monitoring.example.com/alerts/12345",
  "labels": {
    "severity": "high",
    "team": "platform",
    "env": "production",
    "service": "web-server"
  }
}

Custom Monitoring System Payload

{
  "alert_uuid": "abc-123-def",
  "created": "2024-01-01T12:00:00Z",
  "status": "triggered",
  "title": "[CRITICAL] Database Connection Pool Exhausted",
  "message": "Connection pool for production database is at 100% capacity",
  "priority": "1",
  "tags": {
    "environment": "production",
    "component": "database",
    "team": "backend"
  },
  "threshold_value": 100,
  "monitor_url": "https://custom-monitor.com/alerts/abc-123-def"
}

Template for custom payload:

{
  "id": "{{ webhook.alert_uuid }}",
  "time": "{{ webhook.created | iso8601 }}",
  "action": "{{ webhook.status | default: 'fire' }}",
  "name": "{{ webhook.title | regex_extract: '^\\[([^\\]]+)\\](.+)' | default: webhook.title }}",
  "summary": "{{ webhook.message }}",
  "sourceUrl": "{{ webhook.monitor_url }}",
  "isHighPriority": {{ webhook.priority | to_boolean }},
  "threshold": {{ webhook.threshold_value | to_number }},
  "labels": {{ webhook.tags | json }}
}

Advanced Configuration

Custom Field Mapping

Map webhook fields to specific alert properties:

{
  "id": "{{ webhook.incident_id }}",
  "time": "{{ webhook.occurred_at | iso8601 }}",
  "action": "{% if webhook.state == 'open' %}fire{% elsif webhook.state == 'resolved' %}resolve{% else %}warn{% endif %}",
  "name": "{{ webhook.incident_name }}",
  "summary": "{{ webhook.description | truncate: 200 }}",
  "attribution": {
    "entityKey": "{{ webhook.service_name }}",
    "confidence": {{ webhook.confidence | to_number }}
  },
  "metadata": {
    "runbook": "{{ webhook.runbook_url }}",
    "dashboard": "{{ webhook.dashboard_url }}"
  }
}

Conditional Logic

Use conditionals for complex transformations:

{
  "id": "{{ webhook.id }}",
  "time": "{{ webhook.timestamp | iso8601 }}",
  "action": "{% case webhook.severity %}
    {% when 'critical' or 'high' %}fire
    {% when 'medium' %}warn
    {% else %}resolve
  {% endcase %}",
  "isHighPriority": {% if webhook.severity == 'critical' %}true{% else %}false{% endif %},
  "labels": {
    {% for tag in webhook.tags %}
    "{{ tag.key }}": "{{ tag.value }}"{% unless forloop.last %},{% endunless %}
    {% endfor %}
  }
}

Array Processing for Labels

Avoid this if possible, as templates with loops cannot be health checked.

Build labels from array data using for loops:

{
  "id": "{{ webhook.id }}",
  "time": "{{ webhook.timestamp | iso8601 }}",
  "action": "fire",
  "name": "{{ webhook.name }}",
  "labels": {
    {% for tag in webhook.tags %}
    "{{ tag.name }}": "{{ tag.value }}"{% unless forloop.last %},{% endunless %}
    {% endfor %}
  }
}

Example webhook payload with arrays:

{
  "id": "alert-123",
  "timestamp": "2024-01-01T12:00:00Z",
  "name": "High Memory Usage",
  "tags": [
    {"name": "environment", "value": "production"},
    {"name": "service", "value": "web-server"},
    {"name": "team", "value": "platform"}
  ],
  "tagString": "severity:high,region:us-east-1,instance:web-01"
}

Troubleshooting

Common Issues

“Missing required field” errors: Ensure id, time, and action are present in template output
Invalid JSON output: Verify template produces valid JSON syntax
Type conversion errors: Use appropriate filters for data type conversion
Template rendering timeouts: Simplify complex templates or reduce payload size

Debugging Templates

Use the template validation feature during configuration (Coming Soon)
Test with sample webhook payloads (Coming Soon)
Check health check results for validation errors

Integration with Monitoring Systems

The Alert Webhook integration can receive webhooks from various monitoring systems. Configure your monitoring system to send POST requests to the provided webhook URL with the Bearer token in the Authorization header. Supported webhook actions:

fire: Alert is triggered/active
warn: Alert is in warning state
resolve: Alert is resolved/cleared

For monitoring systems that don’t use these exact values, use template logic to map their status values to the supported actions.

Template Generation Assistant

Use this prompt with Claude to automatically generate a webhook template for your specific payload structure:

Prompt for Template Generation

You are an expert in creating Alert Webhook templates for transforming webhook payloads into AlertEvent format using LiquidJS templating with custom filters. Please help me create a template based on my webhook payload.

## Template Requirements

The template uses LiquidJS syntax with custom filters designed for webhook transformation.

### Required Fields (MUST be included):
- `id`: Unique identifier for the alert
- `time`: Timestamp in ISO8601 format
- `action`: One of "fire", "warn", or "resolve"

### Optional Fields:
- `name`: Alert name/title
- `summary`: Brief alert description
- `description`: Detailed alert description
- `sourceUrl`: Link to alert source/dashboard
- `isHighPriority`: Boolean for priority status
- `threshold`: Numeric threshold value
- `labels`: Object with key-value pairs for categorization
- `metadata`: Additional metadata object
- `attribution`: Object for linking to alert rules

### Available Custom Filters:
- `default: 'fallback'` - Provides fallback values
- `iso8601` - Converts dates to ISO8601 format
- `to_number` - Converts to numbers (defaults to 0)
- `to_boolean` - Converts to boolean
- `json` - Serializes to JSON string
- `hash` - Generates consistent hash for IDs
- `regex_extract: 'pattern'` - Extracts text using regex

### Template Context:
- `webhook.*` - Access webhook payload fields
- `now` - Current timestamp in ISO8601 format

### Example Template Structure:

{
  "id": "{{ webhook.id | default: (webhook | hash) }}",
  "time": "{{ webhook.timestamp | iso8601 }}",
  "action": "{{ webhook.status | default: 'fire' }}",
  "name": "{{ webhook.title | default: 'Alert' }}",
  "summary": "{{ webhook.message }}",
  "isHighPriority": {{ webhook.priority | to_boolean }},
  "labels": {{ webhook.labels | json }}
}


### Action Mapping Examples

{
"action": "{% case webhook.status %}
  {% when 'resolved' or 'ok' %}resolve
  {% when 'warning' %}warn
  {% else %}fire
{% endcase %}"
}

## My Webhook Payload

<PASTE YOUR WEBHOOK PAYLOAD HERE>

## Instructions

1. Analyze my webhook payload structure
2. Create a LiquidJS template that maps the payload fields to AlertEvent format
3. Ensure all required fields (id, time, action) are present
4. Use appropriate custom filters for data type conversion
5. Include fallback values using the `default` filter where appropriate
6. Add any relevant labels from the payload
7. If attribution fields are available, include them appropriately

Please provide:

1. The complete LiquidJS template
2. Brief explanation of key mapping decisions
3. Any recommendations for field improvements

### Usage Instructions

1. **Copy the prompt above**
2. **Paste your actual webhook payload** in the designated section
3. **Submit to Claude** for template generation
4. **Test the generated template** in your Alert Webhook integration
5. **Refine as needed** based on your specific requirements
