Sensitive Data Redaction

Resolve can redact data to ensure no leaked sensitive data in your logs or traces even reaches ResolveAI’s storage layer. The redaction approach you choose depends on the selected integration, whether using an on-prem setup or a cloud-based observability tool. Sensitive data includes personally identifiable information (PII), customer-identifiable information (CII), cardholder data (CHD). Protecting this data ensures compliance with industry standards, including PCI, DSS, and GDPR. There are 3 options for sensitive data redaction:

Cloud: Advanced settings in the Resolve page for a cloud-based integration
Satellite: Data redaction capabilities with standard regexes
Sidecar: Deploy alongside the satellite to customize redaction logic

Data Subject to Redaction

The following categories of sensitive information are subject to redaction:

Logs: Entire raw log messages.
Spans / Traces: Attributes and tags.
Metrics: All metric names and label values.

Redacted Data Patterns

Redaction is based on a list of regex expressions on common sensitive data. See the full list below:

Email
Phone number
DOB
Credit card number
Bank account

Card expiration date
SSN
EIN
IP Address
US street address

Option 1: Redaction for Cloud Integrations

Sensitive data redaction can be enabled on a per integration basis.

Open the desired integration, such as Datadog.

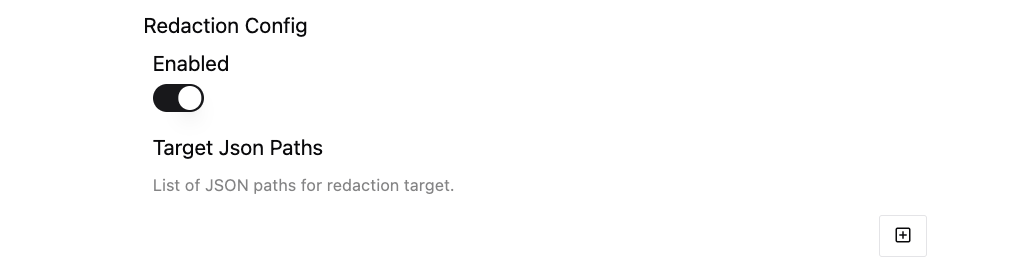

Enable the Redaction Config within the integration settings.

By default, ResolveAI redacts the all JSON paths listed in the “Supported data types and observability platforms” section above.
You can also specify additional custom target JSON paths to redact as needed. E.g; $.data[*].attributes.spans[*].mytags..*

Option 2: On-Prem Redaction from Satellite Sidecar

Sensitive data redaction can be enabled on a per integration basis from the Resolve Satellite.

Prerequisites

The Resolve Satellite should already be installed in your environment. If you need assistance with installation, refer to the instructions provided in Resolve Satellite section.
If you need assistance with the installation, refer to the instructions provided in the respective observability tool integration documentation.
The specific integration you want to redact data for should be set up through the Resolve Satellite.

Update integration configuration

Update your helm values override file (ex: resolve-values.yaml) with the redactionConfig configuration for a specific integration (ex. grafanaOnPrem).

resolve-values.yaml

integrations:
  grafanaOnPrem:
    type: grafana
    create: true
    secretName: <name-from-your-secret-manager>
    connection:
      region: <enum>
      accessKeyId: <string>
      secretAccessKey: <string>
      redactionConfig: # Enable Redaction Config
        enabled: true

Install the satellite and apply the updates to the values file (ex. resolve-values.yaml). Visit DockerHub for the latest Helm chart and satellite.

apply config to satellite and redeploy

helm upgrade --install oci://registry-1.docker.io/resolveaihq/satellite-chart --version <LatestChart> --values resolve-values.yaml --set image.tag=<LatestImage>

Once your satellite is deployed, Resolve automatically redacts sensitive data specific to its configured integration.

Verify redaction is enabled

Login to https://app0.resolve.ai/. Go to the integrations page and and select the integration for which you enabled sensitive data redaction. You should see an automatically created integration based on the provided configuration, including whether redaction is enabled.

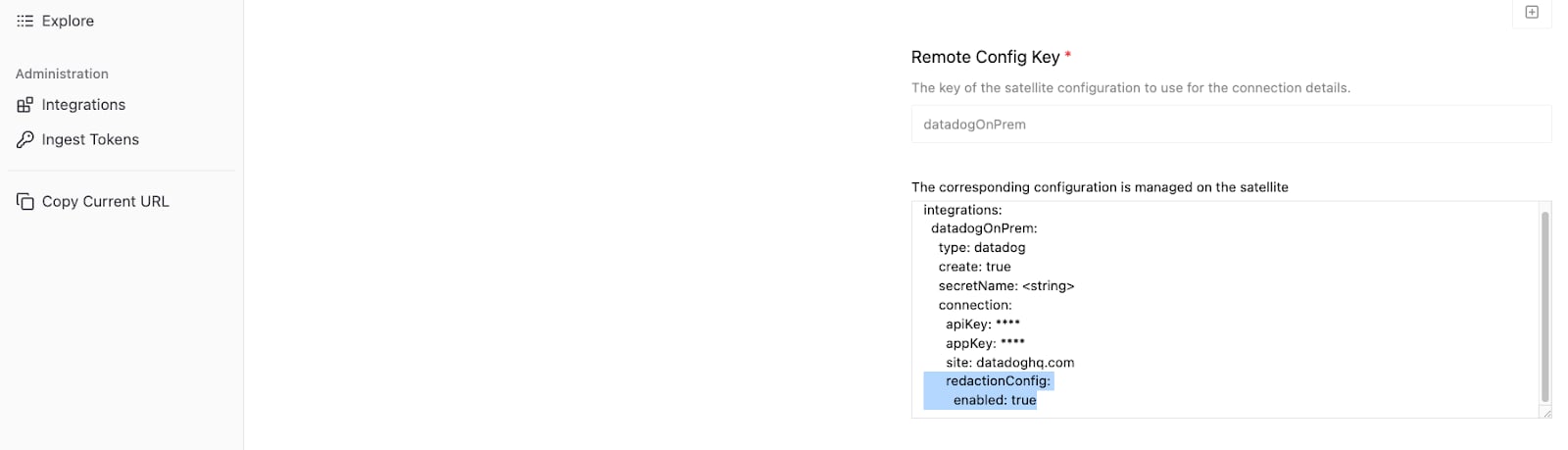

Enabled Redaction Config

Security Sidecar

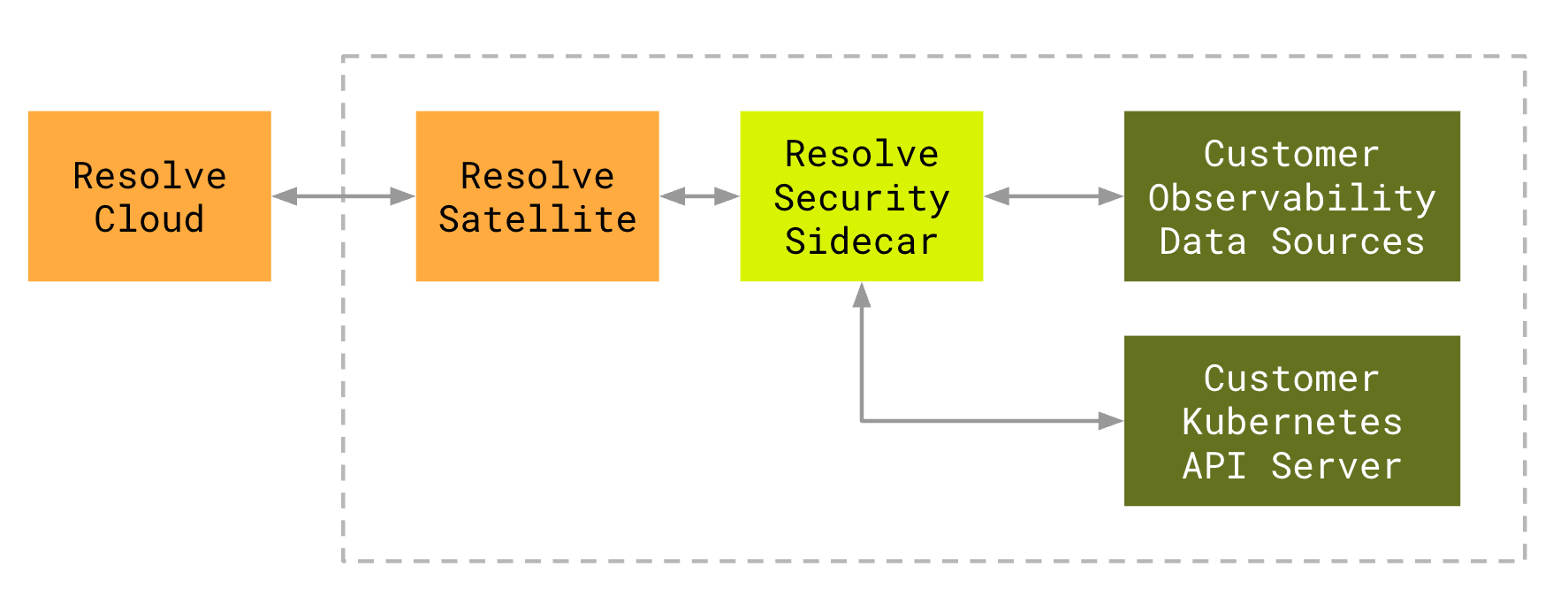

The Security Sidecar is a lightweight HTTP proxy container deployed alongside the Resolve Satellite in the same pod. It provides two capabilities beyond what the ResolveAI web app offers by default:

Secret resolution — Resolves Kubernetes secrets into HTTP headers before requests leave the pod, so the satellite process never sees raw API keys
Response redaction — Strips sensitive data (credit cards, emails, SSNs, etc.) from API responses before the satellite processes them
Auditable redaction logic — Source code is available for review and customization (contact help@resolve.ai to request access)

The sidecar image is publicly available on Docker Hub.

How It Works

Secret Resolution

Integration credentials can be stored as placeholders (e.g., $.load.DATADOG_API_KEY) in the satellite’s integration config instead of plain-text values.

The satellite sends outbound HTTP requests through the sidecar proxy running in the same pod
The sidecar detects headers containing the $.load. prefix
For each match, the sidecar resolves the actual secret value from a Kubernetes secret (injected as an environment variable or mounted as a file)
The sidecar replaces the placeholder with the resolved value and forwards the request to the target service

Response Redaction

On the return path, the sidecar applies regex-based redaction to API response bodies before they reach the satellite. This uses the same patterns listed in the Redacted Data Patterns section above. Redaction is enabled by default and controlled by the ENABLE_REDACTION environment variable.

Prerequisites

The Resolve Satellite is already installed in your environment
At least one on-prem integration is configured through the satellite

Install the Security Sidecar

1. Update Values File

Add the sidecarProxy block to your resolve-values.yaml:

resolve-values.yaml

ingest:
  token: <your resolve satellite token>

clusterName: <your cluster name>
environment: <your environment>

# Enable the security sidecar
httpApiClientProxyUrl: "http://localhost:8080"

sidecarProxy:
  enableRedaction: "true"
  container:
    image:
      repository: clouddatalabs/security-sidecar
      tag: v13
      pullPolicy: Always
    resources:
      limits:
        cpu: 1
        memory: 8Gi
      requests:
        cpu: 1
        memory: 8Gi

2. Configure Secrets

Use secretKeyRefs to make Kubernetes secret values available to the sidecar. Each entry maps a key from a Kubernetes secret to an environment variable name that corresponds to a $.load.<name> placeholder in your integration config. For example, to resolve Datadog API and App keys:

resolve-values.yaml

sidecarProxy:
  secretsConfig:
    secretKeyRefs:
      - envName: DATADOG_API_KEY
        secretName: datadog-resolve-token
        secretKey: apiKey
      - envName: DATADOG_APP_KEY
        secretName: datadog-resolve-token
        secretKey: appKey

With this config, a header containing $.load.DATADOG_API_KEY in the satellite’s integration config will be resolved to the value of the apiKey key in the datadog-resolve-token Kubernetes secret. The satellite itself never sees the raw credential.

Advanced: Mount secrets as files

As an alternative to environment variable injection, secrets can be mounted as files. This may be preferable when using external secret store CSI drivers, or to prevent secrets from appearing in the container’s environment (e.g., kubectl describe pod output).The secret keys must match the $.load placeholders exactly.First, create the Kubernetes secret. The key names must match the $.load placeholders you use in your integration config:

datadog-resolve-token.yaml

apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: datadog-resolve-token
stringData:
  DATADOG_API_KEY: "<your Datadog API key>"
  DATADOG_APP_KEY: "<your Datadog App key>"

Then mount it in your resolve-values.yaml:

resolve-values.yaml

sidecarProxy:
  secretsConfig:
    mountPath: "/etc/secrets"
    secretMounts:
      - name: datadog-creds
        mountPath: /etc/secrets

# You must also define the corresponding volumes.
# The volume name MUST match the pattern: sidecar-<secretMounts[].name>
volumes:
  - name: sidecar-datadog-creds
    secret:
      secretName: datadog-resolve-token

The integration config uses the same $.load.DATADOG_API_KEY and $.load.DATADOG_APP_KEY placeholders as the environment variable approach.

3. Apply Changes

Update the satellite with the new resolve-values.yaml file.

helm upgrade --install resolve-satellite \
  oci://registry-1.docker.io/resolveaihq/satellite-chart \
  --values resolve-values.yaml

4. Verify the Sidecar is Running

Confirm that the pod has two containers (satellite and sidecar-proxy):

kubectl get pods -l app.kubernetes.io/name=satellite -o jsonpath='{.items[*].spec.containers[*].name}'

You should see output containing both container names. You can also check the sidecar logs:

kubectl logs <satellite-pod-name> -c sidecar-proxy

Full Example

Below is a complete resolve-values.yaml that enables the sidecar with secret resolution for a Datadog on-prem integration:

resolve-values.yaml

ingest:
  token: <your resolve satellite token>

clusterName: prod-main
environment: production

httpApiClientProxyUrl: "http://localhost:8080"

sidecarProxy:
  enableRedaction: "true"
  container:
    image:
      repository: clouddatalabs/security-sidecar
      tag: v13
      pullPolicy: Always
    resources:
      limits:
        cpu: 1
        memory: 8Gi
      requests:
        cpu: 1
        memory: 8Gi
  secretsConfig:
    secretKeyRefs:
      - envName: DATADOG_API_KEY
        secretName: datadog-resolve-token
        secretKey: apiKey
      - envName: DATADOG_APP_KEY
        secretName: datadog-resolve-token
        secretKey: appKey

integrations:
  datadogOnPrem:
    type: datadog
    create: true
    secretName: datadog-resolve-token
    connection:
      site: datadoghq.com
      serviceMapEnabled: true
      redactionConfig:
        enabled: true
