Git on Satellite - Resolve AI

Git on Satellite runs the Git integration inside your Kubernetes environment through Resolve Satellite.

This guide covers Git on Satellite for Kubernetes deployments. For AWS ECS Fargate deployments, see Satellite on ECS.

Repositories are cloned and managed in your environment. Code stays in your infrastructure, except for investigation snippets that are sent when needed for analysis.

Overview

Git on Satellite lets Resolve AI:

Clone and sync multiple Git repositories
Search repository files and directories
Read file contents and git history
Analyze commits, diffs, and blame data
Propose code changes and open PRs when write tooling is enabled

When to Use It

Use Git on Satellite when:

Repositories are private to your network
You need in-cluster data residency and control
You need custom networking and cluster-level security controls

If you want the fastest setup without running infrastructure, use Git on Cloud.

Prerequisites

Resolve Satellite deployed in your Kubernetes cluster
Repository hosts reachable from Satellite pods
Kubernetes secret management available
Helm available for Satellite updates

Available Tools

The Git integration provides:

Git network operations: git clone, git fetch
Local read-only git operations: history, diffs, file inspection
File system/text processing tools used during code analysis
Write/remediation behavior when enabled

Code Remediation Behavior

Write/remediation tools are controlled by both Satellite version support and connection config.

Satellite Version	Remediation Tool Support
`v1.0.15+`	Supported
`< v1.0.15`	Not supported

Write/remediation availability is then gated by connection.disableWrites:

disableWrites: true => read-only mode
disableWrites: false => write/remediation tools allowed
If omitted:
- defaults to false when any auth config is type: "github" or type: "ghe"
- defaults to true for token-only auth

Resolve AI does not automatically push changes without user action. PR creation is an explicit user-invoked workflow.

Authentication Options

Option 1: GitHub Auth (Recommended for GitHub)

Add a Git integration with GitHub auth config:

resolve-values.yaml

integrations:
  gitGithub:
    type: git
    create: true
    connection:
      authConfigs:
        githubApp:
          type: "github"

gitVolume:
  type: persistentVolumeClaim

Deploy/update Satellite:

helm upgrade --install resolve-satellite \
  oci://registry-1.docker.io/resolveaihq/satellite-chart \
  --values resolve-values.yaml

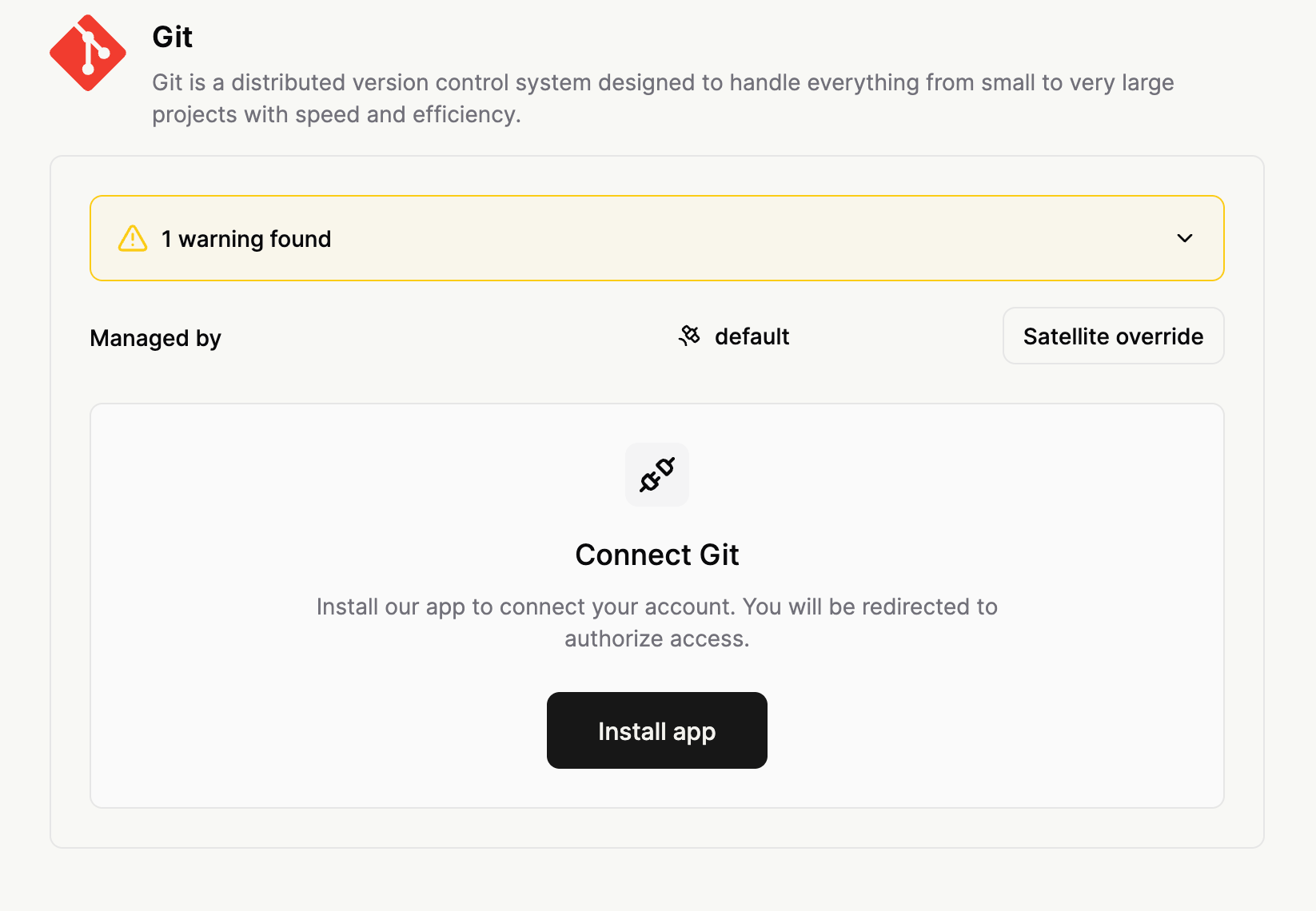

In Resolve UI, open your Git integration and click Install GitHub App.

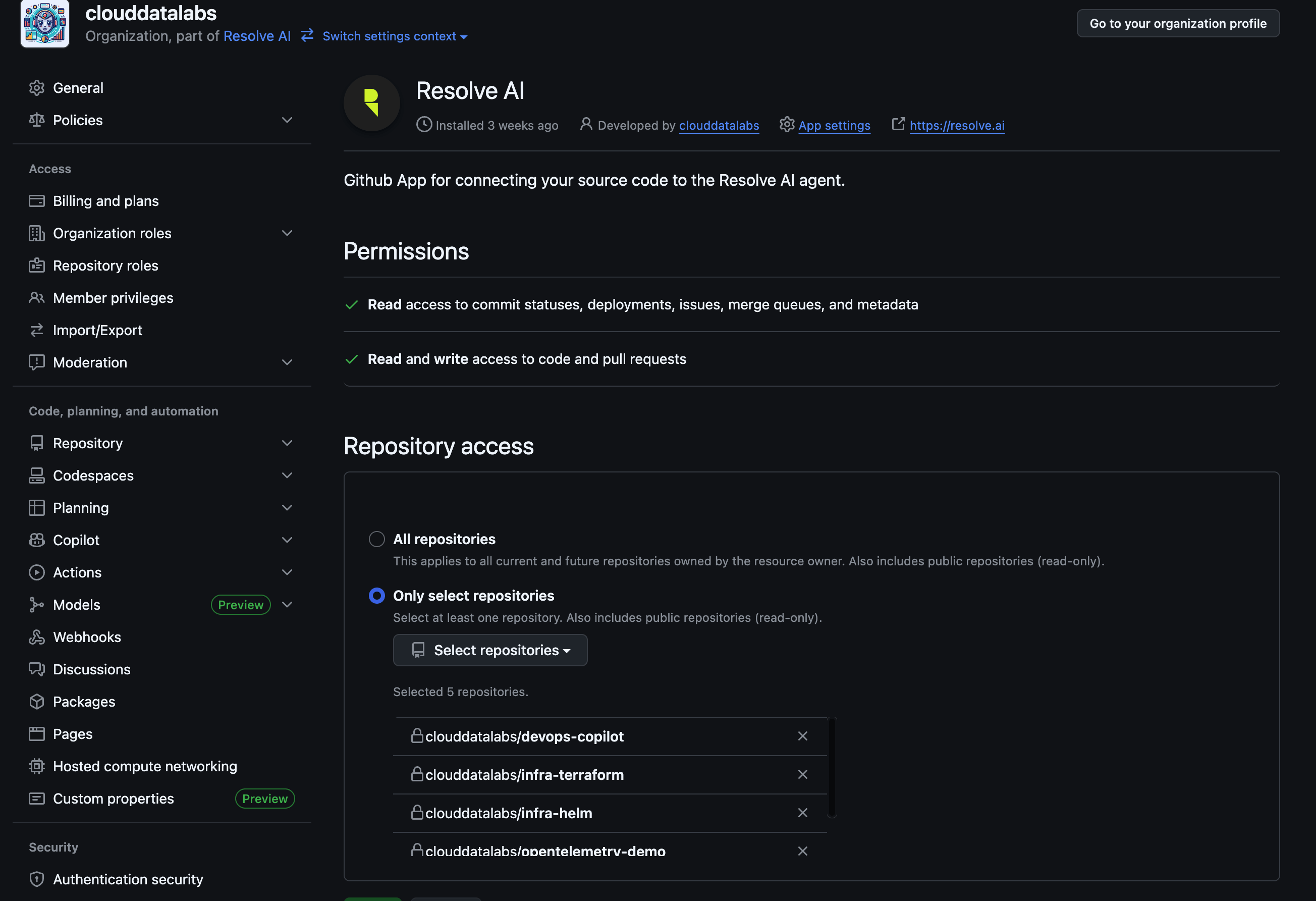

Complete GitHub authorization and choose repositories.
Verify health check and repository listing.

For a GitHub-specific walkthrough, see App for GitHub.

Option 2: Bring Your Own GitHub App (GHE)

Use this option when you operate your own custom GitHub App. It works against any GitHub variant, github.com, GitHub Enterprise Cloud, or GitHub Enterprise Server (on-prem), including air-gapped GHE Server reachable only from inside your network. The end-to-end walkthrough, creating the GitHub App, recommended permissions, generating the private key, locating App ID / Installation ID / API base URL, and the Satellite YAML + secret shape, lives on App for GitHub → Bring Your Own GitHub App (open the Satellite tab under Step 7). The minimal Satellite values are:

resolve-values.yaml

integrations:
  gitGhe:
    type: git
    create: true
    secretName: git-credentials
    connection:
      authConfigs:
        myGheApp: # Must match the key in the gheAuthCredentials secret
          type: "ghe"
          ghe:
            baseUrl: "https://ghe.your-company.com/api/v3"
            appId: "12345"
            installationId: "67890"

gitVolume:
  type: persistentVolumeClaim

Pair with a Kubernetes secret containing gheAuthCredentials.<authConfigName>.privateKey. For a self-signed GHE Server, also add trustedCertificateOverrides.<authConfigName>, see Custom SSL certificates.

Combining GHE with GitHub and token auth

A single Git integration can mix github, ghe, and token auth configs. Use this to cover, for example, github.com repos via the Resolve App plus an on-prem GHE instance plus a GitLab org over a PAT, all in one integration.

resolve-values.yaml

integrations:
  gitMulti:
    type: git
    create: true
    secretName: git-credentials
    connection:
      authConfigs:
        # Resolve-managed GitHub App on github.com
        githubCloud:
          type: "github"
        # Custom GitHub App on a GHE Server instance
        myGheApp:
          type: "ghe"
          ghe:
            baseUrl: "https://ghe.your-company.com/api/v3"
            appId: "12345"
            installationId: "67890"
        # GitLab via PAT
        gitlabToken:
          type: "token"
          tokenAuthRemoteURLs:
            - "https://gitlab.com/your-group/repo-a.git"

gitVolume:
  type: persistentVolumeClaim

The matching secret holds credentials keyed by auth config name:

git-credentials.yaml

apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: git-credentials
stringData:
  gheAuthCredentials: |
    myGheApp:
      privateKey: |
        -----BEGIN RSA PRIVATE KEY-----
        ...
        -----END RSA PRIVATE KEY-----
  tokenAuthCredentials: |
    gitlabToken:
      username: <gitlab-username>
      token: <gitlab-token>

The github auth type does not need a secret entry, its tokens are managed by GitHub App installation metadata refreshed by Resolve.

Option 3: Token Auth

Token auth uses matching keys between connection.authConfigs and credentials in your Kubernetes secret.

Step 1: Create access tokens

Create provider tokens first. See Creating Personal Access Tokens.

Step 2: Create Kubernetes secret

Single org auth
Multi-org / multi-provider auth

git-credentials.yaml

apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: git-credentials
stringData:
  tokenAuthCredentials: |
    githubToken: # Key name used in Step 3 authConfigs
      username: <github-username>
      token: <github-token>

  # Optional: per-auth custom certificate overrides
  trustedCertificateOverrides: |
    githubToken: | # Must use the same key name as tokenAuthCredentials/authConfigs
      -----BEGIN CERTIFICATE-----
      ...
      -----END CERTIFICATE-----

git-credentials.yaml

apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: git-credentials
stringData:
  tokenAuthCredentials: |
    githubOrgOneToken: # GitHub org one credentials
      username: <github-username>
      token: <github-token-org-one>
    githubOrgTwoToken: # GitHub org two credentials
      username: <github-username>
      token: <github-token-org-two>
    gitlabToken: # GitLab credentials
      username: <gitlab-username>
      token: <gitlab-token>

  # Optional: per-auth custom certificate overrides
  trustedCertificateOverrides: |
    gitlabToken: | # Needed only for custom/self-signed GitLab certs
      -----BEGIN CERTIFICATE-----
      ...
      -----END CERTIFICATE-----

Apply secret:

kubectl apply -f git-credentials.yaml

Step 3: Configure integration

Single org auth
Multi-org / multi-provider auth

resolve-values.yaml

integrations:
  gitToken:
    type: git
    create: true
    secretName: git-credentials
    connection:
      authConfigs:
        githubToken: # Must match key in secret
          type: "token"
          tokenAuthRemoteURLs:
            - "https://github.com/your-org/repo-1.git"
            - "https://github.com/your-org/repo-2.git"

# Recommended for production:
gitVolume:
  type: persistentVolumeClaim

resolve-values.yaml

integrations:
  gitToken:
    type: git
    create: true
    secretName: git-credentials
    connection:
      authConfigs:
        githubOrgOneToken: # Must match key in secret (GitHub org one)
          type: "token"
          tokenAuthRemoteURLs:
            - "https://github.com/org-one/repo-1.git"
            - "https://github.com/org-one/repo-2.git"
        githubOrgTwoToken: # Must match key in secret (GitHub org two)
          type: "token"
          tokenAuthRemoteURLs:
            - "https://github.com/org-two/repo-1.git"
        gitlabToken: # Must match key in secret (GitLab)
          type: "token"
          tokenAuthRemoteURLs:
            - "https://gitlab.com/group-one/repo-1.git"
            - "https://gitlab.com/group-two/repo-2.git"

# Recommended for production:
gitVolume:
  type: persistentVolumeClaim

Step 4: Deploy

helm upgrade --install resolve-satellite \
  oci://registry-1.docker.io/resolveaihq/satellite-chart \
  --values resolve-values.yaml

Key matching rule

connection.authConfigs.<name> must match the credential key exactly:
- tokenAuthCredentials.<name> for type: token
- gheAuthCredentials.<name> for type: ghe
If used, trustedCertificateOverrides.<name> must use the same key.

How token auth mapping works

authConfigs.<name>.tokenAuthRemoteURLs defines which repositories use that auth config.
tokenAuthCredentials.<name> provides the username/token for those repositories.
Optional trustedCertificateOverrides.<name> adds a per-auth custom cert for TLS verification.

How GHE auth mapping works

authConfigs.<name>.type: "ghe" declares a BYO-GitHub-App auth config.
authConfigs.<name>.ghe.{baseUrl, appId, installationId} points the Satellite at the right GitHub instance and app installation. Repositories are discovered automatically from the installation, no tokenAuthRemoteURLs needed.
gheAuthCredentials.<name>.privateKey provides the PEM private key for the app.
Optional trustedCertificateOverrides.<name> adds a per-auth custom cert for self-signed GHE Server.

Storage Configuration

Satellite clones repositories into gitVolume.

Default (`emptyDir`)

Ephemeral
Default size: 10Gi
Full re-clone after pod restart

gitVolume:
  type: emptyDir
  emptyDir:
    sizeLimit: 10Gi

Recommended for production (PVC)

Persistent across restarts
Better for large repositories and faster restart recovery

gitVolume:
  type: persistentVolumeClaim
  persistentVolumeClaim:
    spec:
      accessModes:
        - ReadWriteOnce
      resources:
        requests:
          storage: 100Gi

Advanced Configuration

Custom SSL certificates

For self-hosted Git with private CA or self-signed certificates, set trustedCertificateOverrides using the auth config key.

git-credentials.yaml

apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: git-credentials
stringData:
  tokenAuthCredentials: |
    selfHosted:
      username: <username>
      token: <token>
  trustedCertificateOverrides: |
    selfHosted: |
      -----BEGIN CERTIFICATE-----
      ...
      -----END CERTIFICATE-----

`gitSSLNoVerify` (use carefully)

connection:
  gitSSLNoVerify: true

gitVolume:
  type: persistentVolumeClaim

Disabling SSL verification weakens transport security. Prefer trustedCertificateOverrides when possible.

`disableWrites`

connection:
  disableWrites: true

gitVolume:
  type: persistentVolumeClaim

Use this for strict read-only mode.

`disabledSubcommands`

connection:
  disabledSubcommands: ["config", "remote"]

gitVolume:
  type: persistentVolumeClaim

Use this to block specific git <subcommand> operations.

Schema Reference

The connection schema supports inline credentials and certificate overrides.
For Satellite deployments, we recommend storing tokenAuthCredentials, gheAuthCredentials, and trustedCertificateOverrides in a Kubernetes secret (secretName) instead of inline resolve-values.yaml.

connection:
  authConfigs:
    <authName>:
      type: "token" | "github" | "ghe"
      tokenAuthRemoteURLs: ["..."]   # required for type: token
      ghe:                            # required for type: ghe
        baseUrl: "https://ghe.example.com/api/v3"
        appId: "12345"
        installationId: "67890"

  tokenAuthCredentials: # schema-supported inline form
    <authName>:
      username: "..."
      token: "..."

  gheAuthCredentials: # schema-supported inline form
    <authName>:
      privateKey: |
        -----BEGIN RSA PRIVATE KEY-----
        ...
        -----END RSA PRIVATE KEY-----

  trustedCertificateOverrides: # schema-supported inline form
    <authName>: |
      -----BEGIN CERTIFICATE-----
      ...
      -----END CERTIFICATE-----

  gitSSLNoVerify: false
  disableWrites: true
  disabledSubcommands: []

gitVolume:
  type: persistentVolumeClaim

Repository URL Formats

Use HTTPS URLs only. Supported examples:

https://github.com/org-name/repo-name.git
https://gitlab.com/org-name/repo-name.git
https://bitbucket.org/org-name/repo-name.git
https://github.company.com/org-name/repo-name.git

Creating Personal Access Tokens

Token auth needs a provider PAT whose scopes match the access you want (read-only, or read plus write for remediation), and for GitLab a project/group role that matches (Reporter to read, Developer to open MRs). See Git overview → Creating access tokens for the exact scopes and roles for each provider. Create the token there, then store it under tokenAuthCredentials in your secret (see Step 2).

How It Works (Satellite Path)

Integrations Gateway resolves auth configs and prepares tool commands.
GitHub auth repository lists come from GitHub installation metadata refresh (works for both github and ghe auth, ghe calls the configured baseUrl).
Token auth credentials/certs are resolved from the secret-backed connection data.
GHE auth credentials (private key) are resolved from gheAuthCredentials and used to mint short-lived installation tokens against the configured baseUrl.
Refresh uses cloneOrFetch with configured concurrency limits.
Read commands can execute against specific refs using temporary worktrees.
Command validation enforces path safety and blocked subcommands.

Tooling Notes

Read capabilities: search, file read/list, git history/diff, metadata operations
GitHub-specific read capabilities (reading PR data; reading GitHub Actions workflow runs / definitions and PR check status): available with github or ghe auth, or with token auth pointed at GitHub repos when the token grants the equivalent scopes (Actions, Checks, Pull requests, Contents, Metadata)
Write/remediation capabilities: available when enabled (see disableWrites)

Troubleshooting

Health check failures

Verify token/username values in secret (token auth)
Verify gheAuthCredentials.<name>.privateKey is valid PEM (GHE auth)
Verify authConfigs keys match secret keys
Verify Satellite can reach repository host (and the configured ghe.baseUrl for GHE auth)
Verify certificate content is valid PEM for custom cert overrides

Clone failures

Authentication failed: token invalid/expired or missing required repo permissions
Network timeout/refusal: repository host unreachable from Satellite network
Disk pressure: insufficient storage for clone/fetch operations
Invalid URL format: URL must be HTTPS and reachable

Refresh issues

Check whether credentials changed recently
Validate repository host connectivity from cluster
Ensure there is enough storage headroom for fetch/submodule updates

Unexpected read-only behavior

Check if disableWrites is explicitly true
If omitted, token-only auth defaults to read-only
Check Satellite version support (v1.0.15+ required for remediation tools)

Frequently Asked Questions

How often are repositories synced?

Repositories are refreshed during scheduled scrape/health workflows. In practice this is typically every few minutes depending on your org scrape cadence.

Can Resolve AI modify my repositories?

By default, write availability depends on auth type and disableWrites:

Any github or ghe auth config + disableWrites omitted => writes enabled by default
Token-only auth + disableWrites omitted => read-only by default

In both cases, PR creation/remediation still occurs through explicit user-invoked workflows.

How much disk space do I need?

Plan for total repository size plus git metadata and growth. A practical baseline is total repo size x 1.5 to 2.0.

Should I use PVC or `emptyDir`?

Use PVC for production. Use emptyDir only when re-cloning after restarts is acceptable.

Can I use SSH URLs?

No. Use HTTPS repository URLs.

What is the difference between `github`, `ghe`, and `token` auth?

github auth: Resolve-managed GitHub App on github.com. Tokens and metadata are managed by Resolve. Works only against github.com.
ghe auth: Bring-your-own GitHub App on any GitHub instance (github.com, GitHub Enterprise Cloud, or GitHub Enterprise Server). You provide App ID, installation ID, private key, and the API base URL. Use this when you cannot install the Resolve GitHub App, or you need air-gapped GHE Server access.
token auth: Direct username/PAT for any HTTPS Git host (GitLab, Bitbucket, Azure DevOps, GitHub via PAT, self-hosted Git).

All three can be read-only or write-enabled depending on disableWrites and Satellite version. Reading PR data and querying GitHub Actions / PR check status works with github or ghe auth, and with token auth pointed at GitHub repos as long as the token carries the equivalent scopes.

Can I mix `github`, `ghe`, and `token` auth in one integration?

Yes. Multiple auth configs can coexist under authConfigs. For example, you can combine github auth for github.com repos, ghe auth for an on-prem GHE instance, and one or more token auth configs for GitLab/Bitbucket/etc, all in a single Git integration.

How do I add more repositories?

GitHub / GHE auth: grant additional repos during app installation or update on the GitHub instance. They appear automatically on the next refresh.
Token auth: add repository URLs under the correct tokenAuthRemoteURLs auth config and redeploy.

How do I rotate credentials?

Generate new token(s)
Update the Kubernetes secret
Reapply secret
Restart Satellite pods if required by your secret propagation model

kubectl apply -f git-credentials.yaml
kubectl rollout restart statefulset/resolve-satellite

What happens if a token expires?

Health checks and refresh operations for that auth config will fail until token credentials are updated.

Can I configure different permissions for different repositories?

Yes. Use multiple auth configs, each with different credentials and repository URL sets. This lets you isolate permissions by team, provider, or repository group.

Are there limits on concurrent operations and repository size?

There are no hardcoded per-repo size limits in docs-level config. Practical limits come from Satellite CPU, memory, network throughput, and storage capacity. Adjust resources and storage based on repo count/size and refresh concurrency.

Can token auth use write/remediation tools?

Yes, when disableWrites: false and Satellite version support is available (v1.0.15+).

​Overview

​When to Use It

​Prerequisites

​Available Tools

​Code Remediation Behavior

​Authentication Options

​Option 1: GitHub Auth (Recommended for GitHub)

​Option 2: Bring Your Own GitHub App (GHE)

​Combining GHE with GitHub and token auth

​Option 3: Token Auth

​Step 1: Create access tokens

​Step 2: Create Kubernetes secret

​Step 3: Configure integration

​Step 4: Deploy

​Key matching rule

​How token auth mapping works

​How GHE auth mapping works

​Storage Configuration

​Default (emptyDir)

​Recommended for production (PVC)

​Advanced Configuration

​Custom SSL certificates

​gitSSLNoVerify (use carefully)

​disableWrites

​disabledSubcommands

​Repository URL Formats

​Creating Personal Access Tokens

​Troubleshooting

​Frequently Asked Questions

Overview

When to Use It

Prerequisites

Available Tools

Code Remediation Behavior

Authentication Options

Option 1: GitHub Auth (Recommended for GitHub)

Option 2: Bring Your Own GitHub App (GHE)

Combining GHE with GitHub and token auth

Option 3: Token Auth

Step 1: Create access tokens

Step 2: Create Kubernetes secret

Step 3: Configure integration

Step 4: Deploy

Key matching rule

How token auth mapping works

How GHE auth mapping works

Storage Configuration

Default (`emptyDir`)

Recommended for production (PVC)

Advanced Configuration

Custom SSL certificates

`gitSSLNoVerify` (use carefully)

`disableWrites`

`disabledSubcommands`

Repository URL Formats

Creating Personal Access Tokens

Troubleshooting

Frequently Asked Questions
